TPS900 Android EFT POS Terminal With FN module

DM_14

EFTPOS — electronic funds transfer at point of sale — is an electronic payment system involving electronic funds transfers
based on the use of payment cards, such as debit or credit cards, at payment terminals located at points of sale.

Along with the development of the payment technology, EFTPOS also combine with biological recognition technologies, such as Telpo TPS900 combines the fingerprint recognizer. To secure payment required, EFTPOS also will be with face recognition, iris recognition, and so on.Telpo welcome together development and customization.

DM_19

DM_20

DM_21

DM_22

DM_23

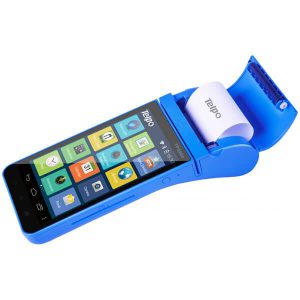

 TPS900 EFTPOS Machine
Processor

  • A7, Quad-core 1.1GHz

  • A7, Quad-core 1.3GHz

Memory

  • 1GB RAM, 8GB FLASH, Ext. TF(micro SD) card

  • 2GB RAM, 16GB FLASH

OSAndroid 5.1
Display5.5" IPS, 1280*720
KeypadSoftkeys
Thermal graphic printerPaper width: 58mm; Φ35mm
Magnetic card readerTrack 1/2/3, bi-directional swipe, ISO7810, ISO7811, ISO7812
Smart card readerISO 7816
Contactless card readerISO14443 Type A/B, ISO18092
Fingerprint scanner

  • ANSI/INCITS 378, ISO/IEC 19794-2, ISO/IEC 19794-4

  • FBI, STQC certificate

IrisSTQC certificate
Camera5M Pixel, auto focus (Barcode software decoding)
SAM SlotsISO7816, 1 or 2
SIM Slots2 SIMs ○ 1 SIM
CommunicationsFDD-LTE/TDD-LTE/WCDMA/GPRS/WiFi/Bluetooth
GPS
Peripheral Ports1 Micro USB, 1 USB (Type-C)
AudioDigital audio speaker
Power SupplyInput:100-240VAC;output:5VDC, 2A
Battery7.4V/2200mAh ○ 7.4V/4400mAh, Lithium Polymer rechargeable battery
Weight450g
Dimensions(mm)205(L)×82(W)×55(H)
CertificationCE, EMV L1&L2, EMV Contactless L1, PCI, RoHS, IP54
MDM (Mobile Device Management)
Standard   / OptionalReserve the right to change the parameters without prior notice.
